Large Diameter 3 Axis 5" Exhaust Tube 200mm SS Tube Bending Machine
Introduction of Tube Bending Machine
1. It is fully automatic pipe bending machine, with PLC control system, two servo for rotary, feeding.
2. Touch screen panel display English, have different bending degree prefabricate, dialogue operation, can choose manual, semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.Multi axes working simultaneously.
3. Bending pipe — Automatic. Rotating pipe — Automatic. Feeding pipe — Automatic.
4. One key back up of programs for USB or disk storage or through INTERNET. Management and storage of bend data and tools is done in standard text files on the hard disk of the control PLC. In case of requirement it is also possible to integrate the PLC into bending machine. Therefore an Ethernet adapter is included. The number of tools and products is practically unlimited. Product and tool files can easily be edited (also on a separate PLC) and printed out.
5. Security code for protection data setting and selected operation features of Pipe bending machine.
6. To access to history bending setting data to facilitate study of malfunction with one set of tooling.
7. All parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.
8. CNC fully auto, have cubical space bending equipment, loading whole bending process is automatic.
9. The machine is convenient operation, stable performance and high safety factor. Our TIANKE MACHINERY Pipe bending machine is ideal choice for pipe processing.
Tube Bending Machine Feature
- Interactive PLC touch screen offers easy access to auto and manual operating modes.
- System diagnostics and multiple language capability.
- Standard clockwise bending direction.
- Fully hydraulic clamping on clamp die and pressure die.
- Drop-way hydraulic clamping.
- Direct acting hydraulic pressure die with adjustable speed valve.
- Maximum 100 sets of program storage, Maximum 32 bends for each program.
- With Independent programmable speeds Y, B, and C axes.
- Programmable material spring back settings for each bend angle.
- Automatic release of tube prior to final bend.
- Bending Axis - Driven by Cylinder, Feeding Axis - Driven by Servo Motor, Rotating Axies - Driven by Servo Motor.
- Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
- Foot Pedal Cycle start.
- With Air Cooling System / Water Cooling System.
- One set of Tooling for Draw Bending.
- Wiper die Bracket.
- 1 Mandrel Rod.
- Operation and Maintenance Manual.
- Tool Box with Adjusted Tools.
- Electric: As required (3 phase 220V or 380V or 415V...)
Application
Our tube bending machine machine is very suitable for many spatial angles and high requirement of precision, like oil tube of car, air conditional tube, frame of bicycle and motorcycle, indoor and outdoor physical equipment, wheelbarrow, bed frame, chairs and etc.
Mitsubishi Servo Motor:The feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.
Mitsubishi Servo Driver:Bending pipes with servo motor power, high precise bending angle and compensation value.

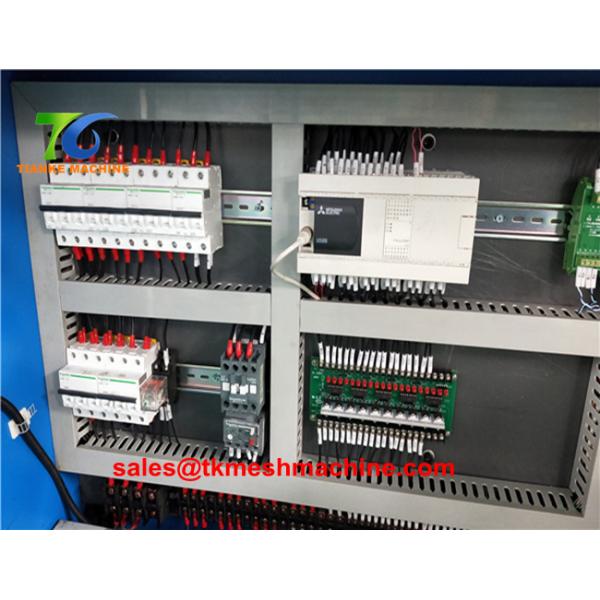

Low voltage electronic components:Schneider, France brand
PLC Controller: A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference
